Robot programmes stall when a drawing leaves the building and the part that comes back will not seat in the assembly. This guide turns the search for a precision cnc machining supplier into a repeatable evaluation: design-for-manufacture feedback, who owns the finish, what inspection records arrive with the parts, and what a realistic cycle basis looks like. It is written for teams buying custom robotic components in aluminium 6063 / 7075 and stainless SUS304 / 316L, where gripper bodies, wrist brackets and chassis plates must interchange across builds.
Supplier Scorecard
Capability claims are easy to write and hard to check. These eight questions turn a supplier conversation into evidence you can compare side by side, each one paired with a worked example from a live robot-component line.
What good looks like: the shop comments on your geometry before the quote is final, flagging a wall that is too thin or a radius the tool cannot reach.
Ask this: which three features drive the cost of this part, and what would you change?
Worked example: design support and validation are offered as part of the service, so features can be reviewed against your drawing before the cycle starts.
What good looks like: machining and surface treatment sit with one responsible party, so an anodized batch is not an anonymous handoff.
Ask this: is the anodizing done on your own line or subcontracted out?
Worked example: sandblasting clear anodizing, sandblasting black anodizing, hard anodizing and nickel plating are listed alongside the machining work.
What good looks like: parts are measured against the drawing, and the record of that measurement travels with the delivery.
Ask this: what do I receive besides the parts themselves?
Worked example: machined parts pass quality inspector inspection, then assembly workers check the built unit against the drawing.
What good looks like: the alloy you specified is the alloy you receive, with documentation that matches the batch.
Ask this: can you supply material documentation for 7075 and 316L?
Worked example: Aluminium 6063, Aluminium 7075, SUS304 and SUS316L are the standard materials on this robot-component line.
What good looks like: the supplier names the machine that will hold a tolerance instead of quoting one blanket figure for the whole part.
Ask this: which operations run on the lathe and which run on the machining centre?
Worked example: Tsugami CNC lathes process all turned parts; 3-axis MAZAK and DMG Mori machining centres process all milled parts.
What good looks like: a cycle basis stated up front that does not quietly move once the order is placed.
Ask this: what is the cycle basis, and what would push it out?
Worked example: the published processing cycle for this line is 10–25 days, which gives planning a fixed reference point.
What good looks like: one named technical contact who answers with drawings and dimensions rather than adjectives.
Ask this: who is my technical contact once the order is placed?
Worked example: integrated design support and validation keeps engineering input inside the same relationship as production.
What good looks like: drawing revisions are controlled consistently from the machine through to the assembly bench.
Ask this: how do you control drawing revisions across machining and assembly?
Worked example: assembly workers assemble per drawing requirements and then verify the assembled unit still meets that drawing.
Document Check
A quotation is a specification in disguise. If any of these six items is missing, you cannot tell later whether the part failed or the paperwork did.
The quote must name the revision it was priced against, so a mid-project geometry change is priced as a change rather than absorbed silently or discovered at first article.
Aluminium 6063, Aluminium 7075, SUS304 and SUS316L behave differently in mass, load and corrosion. State the grade and ask for the material documentation that matches the batch you receive.
“Anodized” is not enough for a robot joint where colour coding and wear matter. Ask for the exact process: sandblasting clear anodizing, sandblasting black anodizing, hard anodizing or nickel plating.
Highlight the dimensions that make the part work and confirm they will be inspected, since a blanket tolerance statement tells you nothing about which feature will be measured.
Say whether the part arrives as a single machined component or as a validated assembly. In-house assembly and validation against customer specifications is how that scope is confirmed on this line.
The listed processing cycle is 10–25 days. Ask what sits inside that window for your release size, finish and assembly scope, then write the agreed basis into the purchase order.
Decision Table
Most sourcing errors happen before the RFQ is sent. Match the part to a starting material and finish, then decide what you actually need the supplier to guarantee.
| Robot part and scenario | Material starting point | Finish to discuss | Decision to lock before RFQ |
|---|---|---|---|
| Wrist-mounted gripper fingers and end-effector tooling where moving mass matters | Aluminium 7075 | Sandblasting black anodizing | Set the mass ceiling and agree a colour code so the finger set is identifiable at maintenance |
| Gripper bodies, base plates and test-rig fixtures | Aluminium 6063 | Sandblasting clear anodizing | Fix the mating interface and the interchangeability requirement across builds |
| Jaws for cleanroom and electronic component handling | SUS304 | Confirm the corrosion and cleanroom requirement with the supplier | Agree which inspection records travel with the batch |

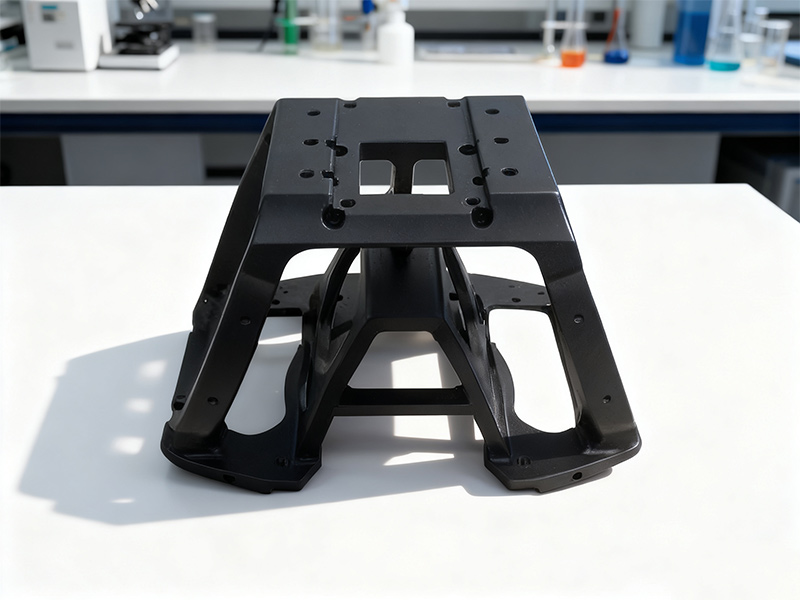

| Lightweight chassis plates for compact robots in logistics and material handling | Aluminium 6063 | Sandblasting black anodizing | State flatness and repeat-build interchangeability on the drawing |
| Pivot pins and wear-prone hardware | SUS316L | Confirm the surface requirement before quoting | Mark the tolerances that must be inspected and reported |
| Multi-colour identification across a robot sub-assembly | Aluminium 6063 or 7075 | Sandblasting clear anodizing against sandblasting black anodizing | Decide the colour split per sub-assembly before the batch is released |
Material and finish pairings are starting points; confirm the recommended combination for your alloy, tolerance and environment when you request the quote.
Sourcing Model
Splitting a robot part across a machinist, a plater and an assembler can shave unit cost. It also spreads accountability across three companies that never speak to each other.
Split the work only when the part has no assembly interface and the finish is not functionally critical. If a gripper or wrist bracket has to arrive as a validated unit, keep machining, finishing and assembly with one supplier.
Preparation
A complete RFQ shortens the quoting loop and removes the follow-up emails that stall a project. Eight items cover almost every robot component enquiry.
Capability Snapshot
Use this as the benchmark when you compare quotes: every number below is a checkable fact about the line, not a marketing adjective.

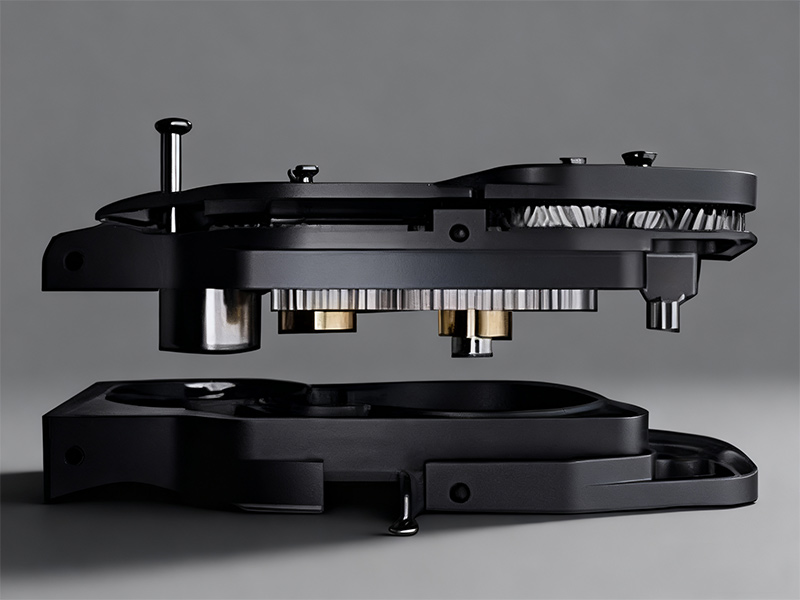

Robots precise components are machined and oxidized to hold high precision while offering a range of product colours. Geometries are engineered to support modular assembly frameworks, so the same component family can serve several robotic platforms without redesign.
Specification summary
| Materials | Aluminium 6063, Aluminium 7075, SUS304, SUS316L |
| Turned parts | Tsugami CNC lathes process all machined turned parts |
| Milled parts | 3-axis machining centres including MAZAK and DMG Mori |
| Inspection | Quality inspector inspection on machined parts |
| Assembly | In-house assembly per drawing, with a fit check against that drawing |
| Surface treatments | Sandblasting clear anodizing, sandblasting black anodizing, hard anodizing, nickel plating |
| Processing cycle | 10–25 days |
| Customisation | Machined to drawing requirements, with design support and validation |
Robot components are quoted per drawing, so include the revision, alloy, finish, quantity per release and any assembly scope. Custom parts machined to drawing requirements, repeat production runs and colour-coded sub-assemblies are all handled through the same quote desk.
Keep adjacent product options together for a faster catalog comparison.
Source high-precision robotic parts from a professional CNC machining manufacturer. We provide 3-axis aluminum machining with Zeiss-verified tolerances.
View product
Robot components manufactured via 3-axis CNC machining. High-precision Al6063/7075 parts with anodizing. Trust a professional robot parts manufacturer.
View product
Fully customizable OEM solutions for custom machined parts. We provide precision CNC machining for high-tolerance robotic components in aluminium.
View productaluminium 6063, aluminium 7075, sus304 and sus316l. the alloy you choose sets mass, load-bearing behaviour and corrosion resistance, so confirm it on the drawing before the quote is issued.
sandblasting clear anodizing, sandblasting black anodizing, hard anodizing and nickel plating. multiple colour finishes also help teams identify sub-assemblies during build and maintenance.
tsugami cnc lathes process the turned parts and 3-axis machining centres from mazak and dmg mori process the milled parts. ask which operation will carry your critical callouts.
the listed processing cycle is 10–25 days. release size, finish and assembly scope all sit inside that window, so confirm the cycle against your own drawing revision when you request the quote.
machined parts pass quality inspector inspection, then assembly workers assemble per drawing requirements and check that the assembly meets the drawing. assembly and validation against customer specifications are handled in house.
yes. ease of installation and customization follow drawing requirements, and design support and validation are offered before the cycle starts. send the step file with a 2d drawing showing finish and critical tolerances.
