Customize various types of shafts

Product Overview

Custom shafts are machined here from bar on CNC turning, milling, grinding and EDM equipment, to the drawing you send. A shaft looks simple on paper, but it is usually the component that sets the fit, the run-out and the wear life of everything mounted around it, so the material, the machining sequence, the heat treatment and the finish are decided together rather than one at a time. Our custom CNC machining services are built around that whole route, from raw material to an inspected part.

Most of what we produce goes into gearboxes and drive trains, pump and compressor assemblies, robot joints and linear axes, medical device mechanisms, communication equipment, automotive and industrial machinery, and smart home appliances. Some shafts are small enough to hold between two fingers; others carry a bearing seat at one end and a spline at the other. What they have in common is that the drawing decides the geometry, and the drawing is the document we work from.

Material choice shapes the process as well. Machined aluminum parts and hardened steel shafts run through different sequences even when the outline looks the same, which is why material, heat treatment and finish are agreed before the first cut. Copper, zinc and titanium alloys, super-hard alloys, ceramics and a long list of engineering plastics are all part of what we machine every week.

The scope of an order can stop at the machined shaft or continue further. We can supply the shaft on its own, or machine the parts that mount on it and assemble the unit so it arrives ready to install. Equipment builders, contract manufacturers working under OEM and ODM programmes, and industrial distributors use us for first builds and for repeat batches, and the same drawing runs again when you reorder. If no drawing exists, talk to your sales contact about what we can work from before the part is quoted.

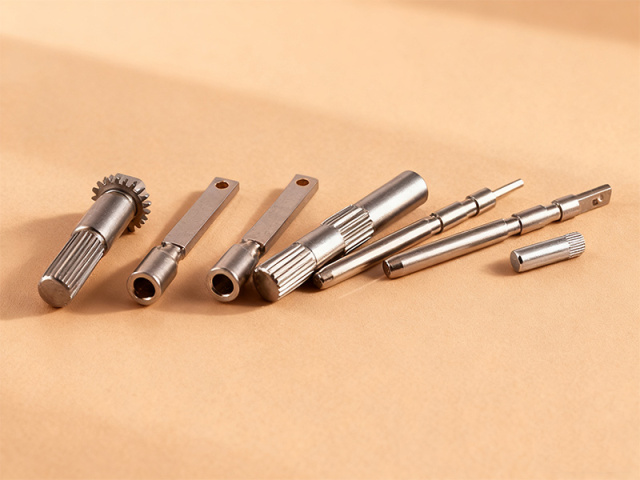

Shaft Forms We Machine

• Straight shafts — turned to the diameter and length on your drawing, with the ends faced so the part seats squarely.
• Stepped shafts — two or more diameters on one piece, so a bearing seat, a shoulder and a locating face are cut in a single setup and stay concentric.
• Splined shafts — external splines cut to your profile, so torque passes into a mating hub without slipping.
• Grooved shafts — retaining, circlip and relief grooves turned at the positions your drawing gives, which is often what holds the rest of the assembly in place.
• Threaded shafts — threads cut in the same sequence as the diameters they sit on, so the thread runs true to the shaft.
• Pinion shafts — a shaft with a toothed gear end machined as one piece, which removes a separate gear fit and the run-out that comes with it.
• Pins, arms and linkage pieces — stepped pins and slotted flat arms are machined on the same setups when your assembly needs them alongside the shaft.
• Custom profiles — if your drawing shows something that is not on this list, send the file. Every CNC machined part we quote is priced from its own geometry rather than from a catalogue page.

Material Options

Machining Process & Accuracy

1. Review the drawing. We check the geometry, the material, the finish and any heat treatment you have specified, and raise anything that has to be decided before the first cut. Planning the route is where our custom CNC machining services earn their place on a new part.
2. Cut the blank. Material comes from bar, billet, an extrusion, a casting or a stamped blank, depending on the shape and the quantity, with stock left for the operations that follow.
3. Rough machine the profile. Diameters, steps and faces are cut with allowance left on the surfaces that heat treatment will move.
4. Heat treat where the drawing calls for it, then let the part settle before finishing.
5. Finish machine the features that carry the fit. Journals, steps, grooves, splines and threads are cut after the material has settled, so the finished dimensions stay where the drawing puts them.
6. Grind or erode the features that need it. A diameter that has to run true inside a bearing, a slot with a sharp internal corner, or a section that has already been hardened is finished on a grinder, by wire cutting or by EDM rather than with a turning tool.
7. Deburr and dress the edges. Hemming and deburring are routine here, because a sharp edge on a shaft damages seals, bearing bores and the hands that assemble it.
8. Inspect and record. CNC machined parts are measured against the drawing before they are packed, the results travel with the batch, and the process record stays on file for the next run. Our quality management system holds ISO and SGS certification, and IATF 16949 applies to our automotive work.

Surface Finishes

• Anodizing — a hard oxide layer that resists wear and corrosion. Clear anodizing keeps the metal look, and dyed anodizing is where most of the colour variation on machined aluminum parts comes from.
• Micro-arc oxidation — a thicker, ceramic-type layer for aluminum parts that see abrasion or heat.
• Nickel plating — a hard, corrosion-resistant surface, commonly specified on sliding and sealing areas.
• Galvanizing — zinc protection for steel parts exposed to weather or moisture.
• Gold plating — low-resistance contact surfaces on small conductive parts.
• Tin plating — solderable, corrosion-resistant surfaces on electrical components.
• Gallate — a conversion treatment applied where an aluminum surface needs a stable base before further finishing.
• Blackening — a dark, lightly oiled finish on steel that also cuts glare on optical and inspection equipment.
• Spray painting — colour matching and a durable topcoat on visible parts.
• Mirror polishing — very low surface roughness for shafts that rotate in bearings or slide through seals.
• Sandblasting — a uniform matte texture, and a good key for anodizing and paint.
• Brushing — a directional satin finish on visible aluminum parts.
• Finishing and fit — plating and anodizing build a thin layer on the surface. If a diameter is a press fit or a bearing seat, tell us, and we will mask it or machine the diameter to allow for the coating.

Heat Treatment

Heat treatment is chosen with the material, because it decides how the finished shaft behaves in service. Machining leaves internal stress in the metal, a wear surface has to be harder than whatever rubs against it, and a shaft that takes shock needs a tough core rather than uniform hardness. Where the drawing calls for heat treatment, it runs before the final finishing operations so the dimensions that matter are cut after the metal has stopped moving.

Through-hardening and case hardening

Through-hardening gives even hardness through the section and suits simple profiles and small parts. Carburizing and carbonitriding build a hard case over a tough core, which is the usual answer for gears, splines and journals that wear while the shaft itself has to absorb load. Nitriding produces a hard surface with very little distortion, useful on precision machined parts that are already close to final size, and vacuum hardening keeps the surface clean and bright where appearance matters. Induction hardening concentrates hardness on one band or journal and lets the rest of the shaft stay machinable.

Coatings and stress relief

DLC coating adds a very low-friction layer to sliding surfaces, which reduces wear where a shaft works against a seal or a bushing. Stress relief is the quieter treatment: it releases the internal stress left by rough machining, so a long shaft does not bow after it has been checked. Both are usually specified alongside the dimensional requirements rather than instead of them.

Two practical points are worth settling with your drawings. Hardening normally happens before final grinding, so the last cuts remove the small amount of movement the heat leaves behind, and any feature that must stay soft — a thread that will be machined later, or a surface that presses into a plastic part — has to be marked as such. Not every shaft needs heat treatment at all; plenty of aluminum and plastic shafts take a surface finish and nothing more, and where hardness is not needed it only adds cost and time.

Specification Reference

Ordering & Delivery

1. Send the drawing and the quantity you need. A 2D drawing or a 3D model is enough to start; keep the material, the finish and any heat treatment on the same file so nothing has to be assumed at the machine.
2. Agree the details that affect fit. We confirm which diameters are fits, whether a coated surface has to be masked, and which features must stay soft if the shaft is heat treated. These three answers are what keep a batch from being reworked on your line.
3. Review the quotation and the schedule. Depending on how complex your requirement is, production generally takes 7–15 days, and a special material can take about a month. Your quotation states the dates for your batch.
4. Production and checking. The batch is machined, finished and measured, and the inspection record travels with the precision machined components, so your incoming inspection has something to work from.
5. Packing and dispatch. Finished diameters, threads and splines are protected during transport and parts are packed so they cannot rub against each other in the box. Shipping method, destination, payment terms and the paperwork that goes with the order are confirmed with your sales contact when the order is placed.
6. Repeat orders. The drawing, the fixtures and the inspection record stay on file, so a second run of the same CNC machined parts follows the same route and matches the first batch.

Assembly & Supply Scope

• Mating parts cut from the same drawing set — the components that mount on a shaft are machined in the same shop, so a hub, collar, spacer, bushing or retaining nut is produced against the same dimensions as the shaft it fits. The fit is established between two parts we made, not between our part and a supplier's part you already hold.
• Fixtures and jigs made in house — locating features built for your part hold the components square during pressing and fastening, so a shoulder seats fully and a bearing does not start at an angle on the journal.
• Fit proven before the batch runs — on a new design we carry out design validation, prototype testing and an assembly simulation first. Interference between a shoulder, a circlip groove and a mating bore shows up there as a drawing change rather than as a stoppage on your line.
• A scope you can set — you can take the shaft on its own, a sub-assembly such as a shaft with its bearings, gear and retainer already fitted, or a completed unit that arrives ready to install. One order can also carry both the shaft and the parts that go on it for you to fit yourself.
• Which parts are joined and how — we confirm what is pressed, keyed, splined or threaded, and what stays loose. Non-standard nuts and other fasteners with bespoke thread forms are produced to mate with your shaft instead of being adapted from a catalogue item.
• Checks on the finished unit — an assembled unit is verified for correct seating, free rotation and run-out against the drawing, and plug gauges and thread gauges confirm the mating features before it is packed.
• Assembly or loose supply — tell us which operations your line is already set up for. If you press bearings and fit retainers in house, the precision machined components travel loose; if you would rather not repeat that work, the same parts come as one unit and your build starts one step later.
• Packing and records — assembled units are packed so nothing shifts or takes a knock in transit, and the inspection record that travels with the batch covers the assembly as well as the individual parts.

Scale & Supply Capability

Suntontop is a precision machining factory based in Shenzhen, China, founded in 2014 and now 300 people strong, with more than ten years of hands-on processing practice. We run a sufficient number of CNC and other processing machines, so capacity can be adjusted flexibly to match order volumes, and every order is produced to your drawings under full-process quality control supported by more than 100 sets of inspection equipment. We support OEM and ODM custom manufacturing for machinery manufacturers and industrial distributors across Europe, the Americas, Southeast Asia and Central Asia, with on-time delivery and responsible after-sales support.
