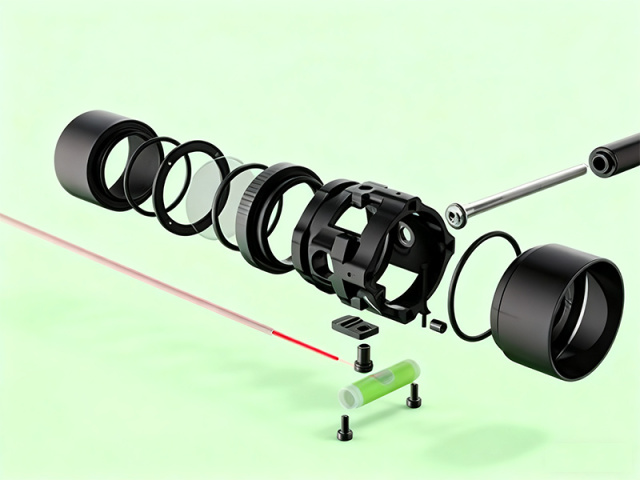

A lens housing is the machined barrel that holds a lens element in position, shields it from dust and impact, and keeps it square to the optical axis of the assembly it sits in. We machine each one to your drawing, cutting the outer body, the internal lens seat, the thread and the mounting points in one controlled sequence so the optical path stays true from the first part to the last.
Because these CNC machining parts are cut rather than moulded, the wall thickness, the internal shoulder that locates the lens, and the thread that carries a retaining ring all sit exactly where your optical design puts them. That is what makes a machined housing practical inside compact transceiver modules, where a fraction of a millimetre of misalignment is enough to lose signal.
As a custom CNC machining supplier, we build these housings for communication equipment manufacturers assembling optical transceivers and signal transmission modules, for research teams putting together prototype optical devices, and for equipment builders who need a housing that drops into an existing barrel without reworking the rest of the assembly. A finished housing is normally paired with a lens element, one or more threaded retaining rings, and the mounting screws that fix it to a chassis or a board carrier.
If you have a drawing, a 3D model, or the part you are replacing, that is enough for us to review and quote. Where a dimension carries the alignment — the seat diameter, the thread pitch, or the distance from the lens plane to the mounting face — tell us which ones your line inspects, and those become the control points we hold through production.
| Specification | Options |
|---|---|
| Base material | Aluminum, titanium alloy, stainless steel, copper, zinc alloy, super-hard alloy, ceramics, or engineering plastics such as POM, PTFE, PEEK, PC and ABS |
| Machining processes | CNC turning, CNC milling, drilling, boring, grinding, wire cutting and EDM |
| Surface treatments | Anodizing, micro-arc oxidation, nickel plating, galvanizing, gold plating, tin plating, blackening, spray painting, mirror polishing, sandblasting and brushing |
| Heat treatments | Through-hardening, carburizing, carbonitriding, nitriding, vacuum hardening, induction hardening, DLC coating and stress relief |
| Secondary operations | Fixture manufacturing, mould casting, electroplating, assembly, hemming and deburring |
| Threaded features | Internal and external threads for retaining rings, lens cells and mounting screws |
| Surface appearance | Colour and tone options produced by the finishing steps |
| Housing form | Turned or milled body with an internal lens seat, datum faces and threaded sections |
Optical transceivers are the most common home for this housing. Inside a transceiver the lens element has to sit at a fixed distance from the emitter or the detector, and the machined seat and the retaining ring hold that distance while the module works through thermal cycling and board vibration.
Signal transmission modules work on the same principle. Wherever a lens or a collimator has to line up with a fibre, a waveguide or a free-space beam, the housing gives the optic a rigid, repeatable location and keeps stray light out of the path.
Laser and sensing assemblies use the housing mainly for protection. A machined body shields the optical surface from dust and contact during handling and assembly, and the finished outside of the barrel takes the wear instead of the optic.
Laboratory and prototyping work is another common setting. Research teams use these CNC machining parts to assemble experimental optical devices, set up a test bench, or verify a mechanical fit before committing to production tooling — because the housing is machined to a drawing, a design change means a new programme rather than a new mould.
Optical measurement and sensing equipment relies on the same idea at a smaller scale, where a compact housing has to hold an optic steady inside a handheld or bench instrument without adding bulk to the assembly.
Suntontop is a precision machining factory based in Shenzhen, China, founded in 2014 and now 300 people strong, with more than ten years of hands-on processing practice. We run a sufficient number of CNC and other processing machines, so capacity can be adjusted flexibly to match order volumes, and every order is produced to your drawings under full-process quality control supported by more than 100 sets of inspection equipment. We support OEM and ODM custom manufacturing for machinery manufacturers and industrial distributors across Europe, the Americas, Southeast Asia and Central Asia, with on-time delivery and responsible after-sales support.
Tell us the environment the housing works in and the weight budget you are working to, and we will match the material to it. In practice most optical and communication housings are produced in aluminum, because it machines cleanly, stays light and takes anodizing well. Titanium and stainless steel come in where the housing needs more stiffness or has to survive a corrosive installation, and engineering plastics such as PEEK, POM or PTFE are used when the body has to insulate electrically or stay very light. Ceramic and super-hard alloy options exist for the most demanding wear or thermal conditions.
Yes. Send the drawing or 3D model of the assembly and we machine the lens seat diameter, the shoulder depth, the thread and the mounting pattern to match it. Where the housing has to line up with an existing barrel or a board-level carrier, those interfaces become the control dimensions, and a first article is checked against them before the run is released. As a custom CNC machining supplier we are used to working from an assembly drawing rather than a finished part, which is usually where the alignment detail actually lives.
The seat, the threads and the mounting faces are cut in the same setup wherever the geometry allows, so they are positioned from one another instead of from separate operations. Where your drawing shows a positional tolerance between features, the precision machined parts are finished on a precision machine and measured against that tolerance before the batch continues. That is what keeps the optic on axis, rather than relying on a loose fit that happens to close up during assembly.
Yes. Internal and external threads for retaining rings, lens cells and mounting screws are machined as part of the housing, and matching rings, spacers or mounting hardware can be produced in the same run so the threads are cut to one drawing. If the housing has to mate with a ring or a barrel you already hold, send the mating part or its thread specification so the fit is checked before production. Our precision CNC machining services cover the thread verification and the fit check as part of the order.
Anodizing and micro-arc oxidation are the usual choices for humid or outdoor conditions, because they build the barrier into the aluminum surface rather than laying it on top as paint does. Nickel plating adds a harder, more wear-resistant skin where the housing is handled repeatedly. Gold and tin plating come in where electrical contact matters as much as corrosion resistance. Tell us where the housing will be installed and how long it has to last, and the finish can be matched to that.
Heat treatment is planned before the final machining pass, so the features that carry the alignment are cut after the material has settled rather than before. For a housing with a tight seat diameter or a critical thread, the usual sequence is rough machining, stress relief, then finishing, which keeps the lens seat and the threads where the drawing puts them. If your part needs hardening rather than stress relief, say so on the drawing so the sequence and the finishing allowance can be planned around it.
Yes. We machine components for communication equipment, so we can work from the assembly drawing rather than the housing alone — checking how it sits against the barrel, the carrier and the surrounding electronic assembly parts, and adjusting datum points and clearances so it drops into place. Sharing the assembly model or a sectional drawing lets the alignment points be confirmed before machining instead of after the parts arrive. That review is part of what an OEM CNC machining manufacturer is expected to bring to a build.
Often, yes. Send the old housing with any part markings, plus a photo and a few key measurements if no drawing exists. We recreate the geometry, confirm the critical interfaces with you, and produce CNC machining parts that fit the existing assembly. Where the original design is no longer accurate enough, this is also a good moment to correct the tolerance rather than copy it.
