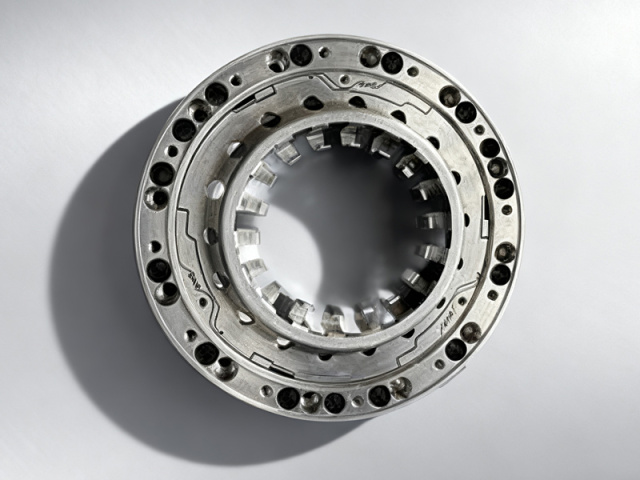

Laser flange assembly part- Precision CNC Machining Services

Product Processing:
Processing Cycle: 3-15 Days
Product Advantages: CNC machining and oxidation processes provide high precision and a variety of product colors.
Description

  Materials:
 Aluminium6063 /Aluminium7075 /SUS304  /SUS316L

  Processing Methods:
Equipment:3+2 machining center etc。                                                               Mechanical processing:First of all,we'll do rough machining with allowance left,all the precision and threaded holes will not be processed temporarily。Next step ,perform corresponding heat treatments according to different aluminum grades 。  the final step,Finish-machine all the all precision holes and threaded holes to meet the requirements of the drawings。
Measuring equipment :  Zeiss 3D,plug gauges,thread gauges  etc

  Surface Treatments:
Sandblasting clear anodizing /Sandblasting black anodizing /Hard  anodizing /Nickel plating etc


  Heat Treatments:
Annealing to remove internal stress


  Product Processing:
Processing Cycle: 3-15 Days
Product Advantages: CNC machining and oxidation processes provide high precision and a variety of product colors.

Material Options

  • 6063 aluminum — the everyday choice for bench-mounted optics: light, dimensionally steady, and it takes anodizing evenly.
  • 7075 aluminum — aerospace-grade alloy for flanges that carry load or see temperature swings, heat treated to hold their geometry.
  • SUS304 stainless — for humid labs and equipment that is wiped down regularly; stainless machines more slowly than aluminum, so allow more time in the cycle.
  • SUS316L stainless — the most corrosion-resistant grade in this range, suited to chemical exposure and cleaned production areas.
  • What stays the same — whichever grade you choose, these CNC machined parts run on the same equipment and are inspected the same way, so a change of material does not change how the flange fits.

Machining Process

  1. Rough machining leaves allowance on all critical surfaces while the precision and threaded holes stay uncut — the opening stage of every precision CNC machining services job on a part that will be heat treated.
  2. Heat treatment follows roughing, matched to the aluminum grade so the part is settled before any finishing cuts are taken.
  3. Finish machining brings every precision hole and threaded feature to the tolerances on your drawing, so thread depth and hole position land on the print rather than near it.
  4. Inspection closes the cycle: every precision hole and thread is measured against the drawing before the part moves on to surface finishing.

Surface Finish Options

  • Sandblasted clear anodizing — a natural aluminum look for bench-mounted optics, with even light scatter across the flange face.
  • Sandblasted black anodizing — reduces stray reflection around a beam path and suits parts visible on the outside of an enclosure.
  • Hard anodizing — adds wear resistance where a flange is clamped, released and re-aligned often.
  • Nickel plating — a harder, brighter surface for parts that see frequent handling or need a different look from anodized aluminum.
  • Specifying the finish — colors can be matched across several parts on the same machine, so send a sample or a reference when the flange will be visible in the finished equipment.

Specifications

Material Aluminum 6063 / 7075; SUS304 / SUS316L stainless steel
Machining center 3+2 axis
Precision holes and threads Finish machined to drawing tolerance
Heat treatment Annealing to relieve internal stress
Surface treatment Sandblasted clear anodizing; sandblasted black anodizing; hard anodizing; nickel plating
Mounting pattern Per customer drawing
Customization Geometry, material grade and finish to customer specification
Processing cycle 3-15 days
Component range SEMI precision components

Applications

Optical engineering labs use this flange as the interface that bolts a laser source onto an optical bench or test rig, so beam position can be measured, adjusted and repeated without reworking the mount. Semiconductor equipment builders mount it inside laser head assemblies for wafer inspection and lithography, where the beam path has to stay fixed across long production runs. In laser marking, welding and cutting systems, the same part holds the optics module at a repeatable stand-off on the machine frame or gantry. Because the flange is machined to a drawing rather than a fixed catalog shape, it also works as a mount interface between modular sub-assemblies. On rebuilds, replacement precision machined parts can be cut to the original drawing instead of the mount being modified to accept a new one.

Scale & Supply Capability

Shenzhen Suntontop Technology Co., Ltd is a Shenzhen-based CNC machining manufacturer supplying custom metal and polymer components to OEM buyers. Our work covers industrial equipment, robotics, medical devices, beauty equipment and optics, in materials such as 6063/7075 aluminium and 316L stainless steel, with anodizing and heat treatment available. Every part is made to drawing, so tolerances, materials and finishes follow your specification rather than a fixed catalogue. As a direct factory supplier we handle both prototype and repeat production runs, and our engineering team supports customisation and technical questions from first enquiry onward.



FAQ

What materials are available for the laser flange assembly part?

We provide the laser flange assembly part in aluminium alloys 6063 and 7075, as well as stainless steel grades SUS304 and SUS316L. These materials ensure durability and precision, suitable for various industrial laser mounting applications.

Can you customize surface finishes on the laser flange assembly part?

Yes, we offer multiple surface treatments including sandblasting with clear or black anodizing, hard anodizing, and nickel plating. Each finish enhances corrosion resistance and appearance, allowing you to select the best option for your application’s requirements.

What are the typical lead times for custom CNC machining services on this part?

Our processing cycle generally ranges from 3 to 15 days depending on part complexity and customization. We prioritize efficient custom CNC machining to help you meet project deadlines without compromising on precision.

Do you provide support for installation and dimensional validation of laser flange assemblies?

We assist with early-stage design support and can supply precision components aligned to exact drawings. Our use of advanced measuring equipment ensures dimensional accuracy, facilitating smooth integration and reliable assembly performance. Our precision CNC machining services underpin consistent quality across delivery.
