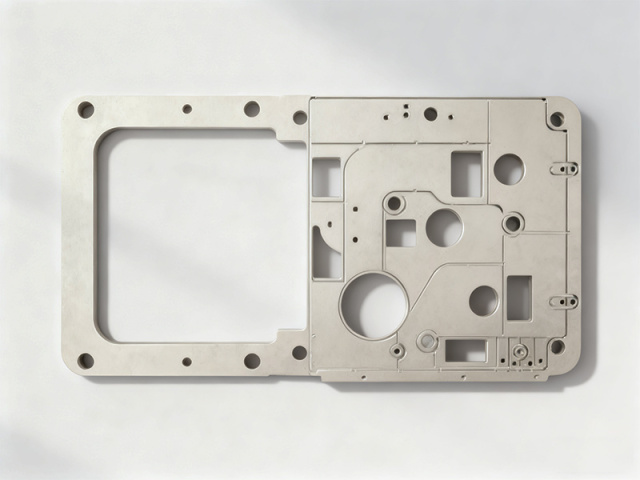

Heat transfer plate of the anesthesia machine

Product Overview

The heat transfer plate is the machined metal part that moves heat through an anesthesia machine assembly. It is not a stock item, and it is not adapted from something else — the outline, the mounting holes, the cutouts and the threaded features are all machined to your drawing so the plate fits the space your design gives it.

Most of the plates we ship are precision machined parts for medical equipment builders: your engineering team needs the plate to drop into an existing assembly without rework, and your repeat orders need the twentieth batch to arrive looking exactly like the first. Because the drawing is the specification, what matters is how faithfully the machined features follow it.

Two things are asked of a plate like this at the same time. It has to move heat the way the machine design intends, and it has to hold its shape while doing it. The material and finish are chosen for the first job; the machining sequence is what protects the second.

As a CNC machining supplier we also work early in a programme, not only at volume. Prototype plates for thermal validation, a single plate after a design revision, and production quantities once the design is frozen all go through the same process.

Key Features

• Hole placement that follows your drawing — mounting holes, clearance holes and threaded features are finished to the callouts on your drawing, so the plate lines up with the assembly on the first fit rather than after a file and a reamer.
• A material choice driven by the thermal job — the grade is matched to how much heat the plate has to move and how much weight the assembly can carry, instead of being fixed by whatever happens to be on the shelf.
• Built for medical equipment programmes — much of what we machine goes into medical, robotics and semiconductor equipment, so working to drawing and releasing precision machined parts against measured features is the normal way we operate.
• A finish that protects and identifies — the surface treatments shield the plate against cleaning agents and humidity, and the anodizing options give you a colour choice for the assembly, from a clear satin to a deep black.
• Modular fit with anesthesia machine assemblies — the plate is treated as a component of the assembly, so its mounting points and interface features work with the parts around it instead of forcing a redesign.
• Made to your revision, not to a stock number — when the machine design moves to a new revision, the plate moves with it and is machined to the revision you approve.
• Custom CNC machining parts, not modified catalogue parts — there is no standard plate behind this product to cut down or shim, which is why a question about geometry always comes back to the drawing you specified.
• A CNC machining manufacturer rather than a trading house — the part is cut, heat treated, finished and inspected in our own workshop, so an answer about manufacturing comes from the people who run the machine.

Material & Finish Options

Machining Process & Equipment

1. Rough machining comes first. The plate outline and its larger features are cut on our 3-axis MAZAK and DMG Mori machining centers with allowance left on every surface, and the precision holes and threads are deliberately held back.
2. Annealing follows, matched to the grade of the plate. This is the step that lets aluminum CNC machining hold its shape: internal stress released at this point cannot pull the finished part out of tolerance weeks later.
3. Finish machining cuts every precision hole and threaded hole to the drawing requirements, with the plate located in fixtures so the hole-to-hole relationship stays true across a batch of precision machined parts.
4. Edges are deburred after machining, so the plate is safe to handle at the assembly station and carries no raised edge that would interfere with the parts around it.
5. The agreed surface treatment goes on last, once machining is complete, and the plate is then ready for final inspection.

Applications & Use Scenarios

• Anesthesia machine production lines — the plate goes into the assembly where thermal regulation has to stay consistent from one unit to the next, so the production station receives a component that meets the drawing without extra fitting.
• Prototype and design validation — engineering teams building a new anesthesia delivery platform use plates that replicate the design intent, so thermal simulation and functional testing are run against the real part rather than an approximation.
• Thermal testing and bench validation — because the geometry follows the drawing, a test plate behaves like a production plate, which keeps test results meaningful when the design moves to volume.
• Design revisions on an existing platform — when a mounting pattern or hole layout changes, the plate is re-machined to the approved revision while the earlier drawing stays available for machines already in service.
• Multi-configuration builds — where several machine configurations share the same plate interface, one drawing can serve the range, which simplifies build planning and spare-part holding.
• Aluminum plates for weight-conscious builds — most plates for these assemblies run through our aluminum CNC machining route, because an aluminum grade can carry the thermal job at a lower weight than steel.
• Contract builds for medical equipment manufacturers — when a durable medical equipment provider places a production order with us as its CNC machining supplier, the drawing, the machining plan and the inspection method carry over from the prototype batch.

Ordering & Delivery

1. Send your drawing with the hole pattern, thread callouts, material grade, surface finish and the quantity you need. If a feature is left open on the sheet, tell us and we will confirm it with you rather than assume.
2. We review the drawing before anything is cut and come back with questions on material, finish, or any dimension that needs a tolerance decision. A drawing question is far cheaper to settle at this stage than after a batch has been machined.
3. Production is scheduled in our own workshop. As the CNC machining manufacturer we run the parts ourselves, so the date we confirm is the date we work to. Depending on how complex your requirement is, production generally takes 7-15 days; special materials take about one month.
4. Small to medium batch production is supported with flexible scheduling. Ask us to keep your drawing and machining programme on file, and a repeat order starts from a known point rather than from a new quotation exercise.
5. Commercial details — packing method, carrier, shipping terms and payment terms — are agreed with your sales contact when the order is confirmed, before dispatch. If your warehouse has labelling or packing requirements, send them with the order so they are built into the packing instruction.
6. If anything in the batch does not match the confirmed drawing, raise it with your sales contact. A CNC machining supplier is judged on what happens after delivery as much as before it, and we would rather hear about a problem early.

Scale & Supply Capability

Suntontop is a precision machining factory based in Shenzhen, China, founded in 2014 and now 300 people strong, with more than ten years of hands-on processing practice. We run a sufficient number of CNC and other processing machines, so capacity can be adjusted flexibly to match order volumes, and every order is produced to your drawings under full-process quality control supported by more than 100 sets of inspection equipment. We support OEM and ODM custom manufacturing for machinery manufacturers and industrial distributors across Europe, the Americas, Southeast Asia and Central Asia, with on-time delivery and responsible after-sales support.
